拉力试验机软件模块的结构图是怎么样的?

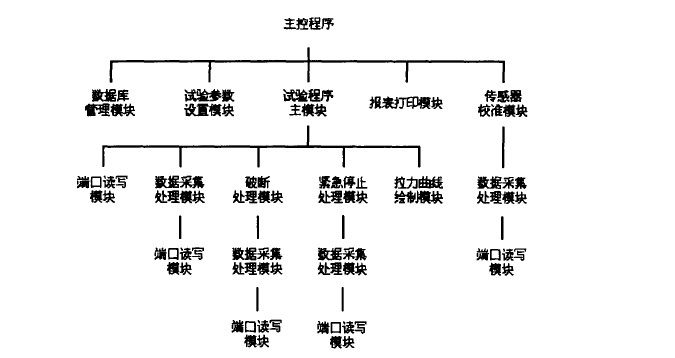

拉力试验机主程序模块下,直接挂接不同的子程序模块,实现独立或综合的功能。

In the tensile test under the main program module, articulated different subroutines module directly, can realize the function of independent or integrated.

在主控程序中,包含了试验程序主模块、试验参数设置模块、数据库管理模块、报表打印模块、传感器校准模块。

In the master control program, including the experiment program main module, parameter setting module, database management module, report forms printing module, sensor calibration module.

在试验过程中,因为会有对采集卡的数据读写、试件破断、紧急停止、拉力曲线绘制等过程,所以分别将它们作为子模块挂接在试验程序主模块下。

In the process of test, because there will be to read and write the data acquisition card, the specimen fracture, such as emergency stop, tensile curve drawing process, so they as a child module respectively articulated in the test procedure under the main module.

但是在这几个过程中,都需要通过数据的采集与处理过程完成,所以数据的采集与处理作为一个子模块被它们分别调用。

But in the process of this a few, needs to be done through the data acquisition and processing, so the data acquisition and processing, as a child module is called, respectively.

在传感器校准时,系统需要进行数据采集来对校准传感器,所以数据的采集与处理作为一个子模块被传感器校准块调用。
When the sensor calibration, data acquisition system is needed to calibrate sensors, so the data acquisition and processing as a child module is called sensor calibration block.
